FlexiRay SFR3

Thin and fully protected antenna for outdoor use.

SFR3 Characteristics

Modular slim rugged antenna FlexiRay with high-quality design enables creation of RFID reading zones in entrances, exits, corridors, doors and gates / no matter if indoor or outdoor due to IP65 protection.

Esthetic design suitable for indoor / outdoor RFID applications
Rugged enclosure IP65 for industrial and logistic projects

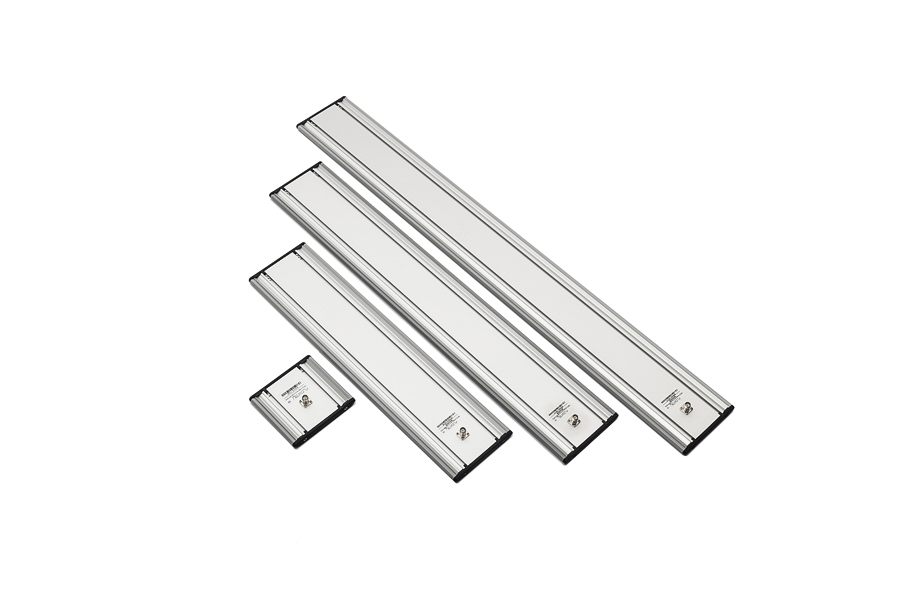

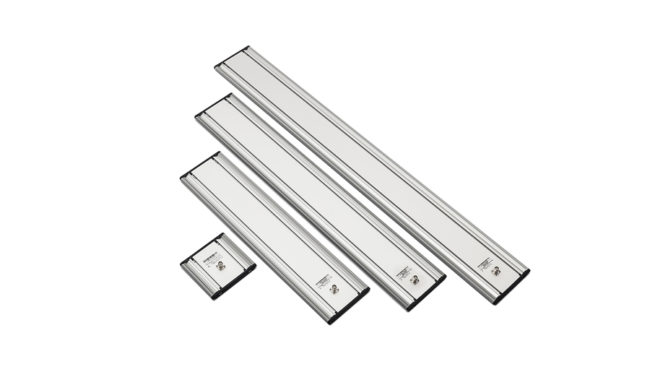

Low profile and modular antenna length
Easy and flexible mounting capabilities
VESA standard / mounting accessories
Read range applications 4-7 meters*

Color Finish

Our antennas SFR line is designed to be esthetic and suitable for interiors too. No more industrial look of antenna in interior or retail / office / shops etc. We are able customize surface by 40+ various decors / colors.

Mounting

Antenna FlexiRay SFR3 provides flexible mounting capability. Industrial standard VESA 75 slot is supporting variety of mounting options:

SFR-MA-100 Wall Mount Kit
SFR-MA-200 Pole Mounting Kit
SFR-MA-300 Universal Adjustable +/-30° Mount Kit Wall / Pole

Connectors

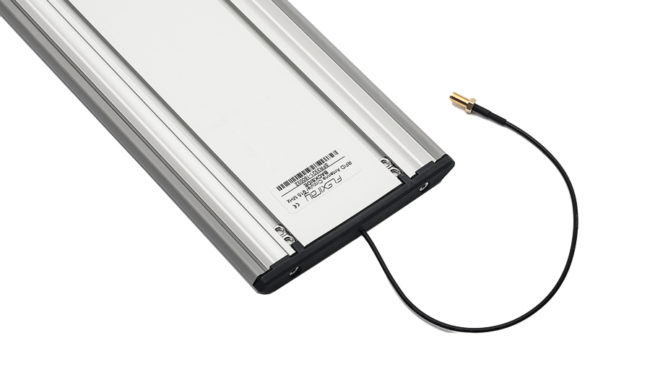

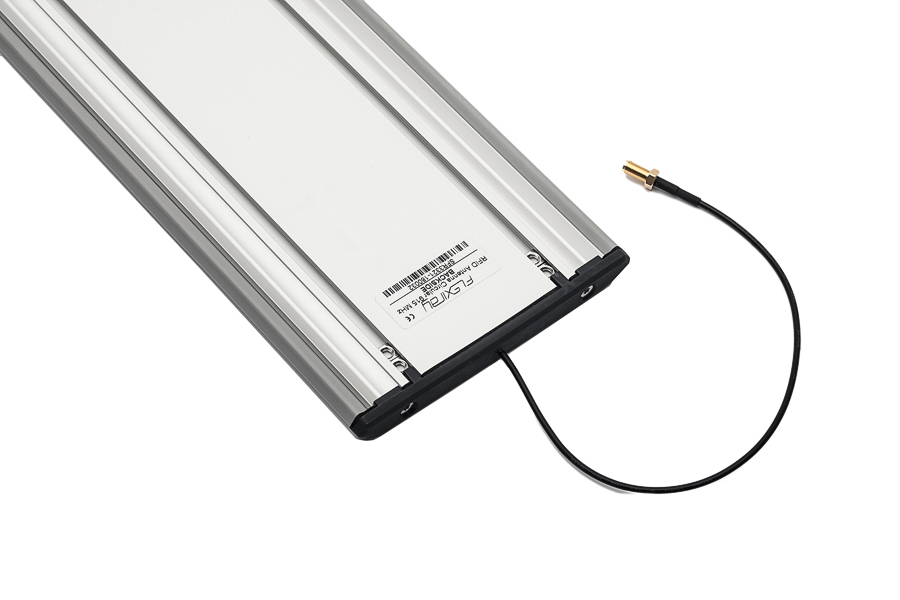

Antennas are equipped with RP-TNC connector optionally with SMA connector or 250 mm (9,8″) pigtail SMA female connector. We are able to customize type of connector.

*Tested in open-air environmental Alien / Impinj reader 30 dBm, 4m cable, Alien Squiggle H3 tag

Technical specification

Antenna Model No.	SFR310X	SFR320X	SFR330X	SFR340X
Frequency Range	866 – 868MHz (ETSI) 902 – 928MHz (FCC)
Polarization	circular RHCP
Gain	2,5 dBi (5,5 dBic)
Impedance	50 Ohms
Max. Input Power	10W
Connector	RP-TNC or SMA female pigtail 25 cm or SMA connector
VSWR – ETSI	< 1,3 : 1	< 1,3 : 1	< 1,3 : 1	< 1,3 : 1
VSWR – FCC	< 1,5 : 1	< 1,5 : 1	< 1,5 : 1	< 1,5 : 1
Dimensions (mm/inch):
Length ETSI/FCC	134mm / 5,3″	584mm / 23,0″	834mm / 32,8″	1084mm / 42,7″
Width	140mm / 5,51″	140mm / 5,51″	140mm / 5,51″	140mm / 5,51″
Height (without connector)	14mm / 0,55″	14mm / 0,55″	14mm / 0,55″	14mm / 0,55″
Weight (kg)	0,4kg / 0,9lbs	1,4kg / 3,1lbs	2,0kg / 4,4lbs	2,5kg / 5,5lbs
Protection class	IP65
Operating Temperature	0°C / 60°C

Order Codes
ETSI (865 – 868 MHz), RP-TNC	SFR-3100	SFR-3200	SFR-3300	SFR-3400
ETSI (865 – 868 MHz), SMA (F)	SFR-3110	SFR-3210	SFR-3310	SFR-3410
ETSI (865 – 868 MHz), SMA (F) pitail 25cm	SFR-3120	SFR-3220	SFR-3320	SFR-3420
FCC (902 – 928 MHz), RP-TNC	SFR-3101	SFR-3201	SFR-3301	SFR-3401
FCC (902 – 928 MHz), SMA (F)	SFR-3111	SFR-3211	SFR-3311	SFR-3411
FCC (902 – 928 MHz), SMA (F) pigtail 25cm	SFR-3121	SFR-3221	SFR-3321	SFR-3421
