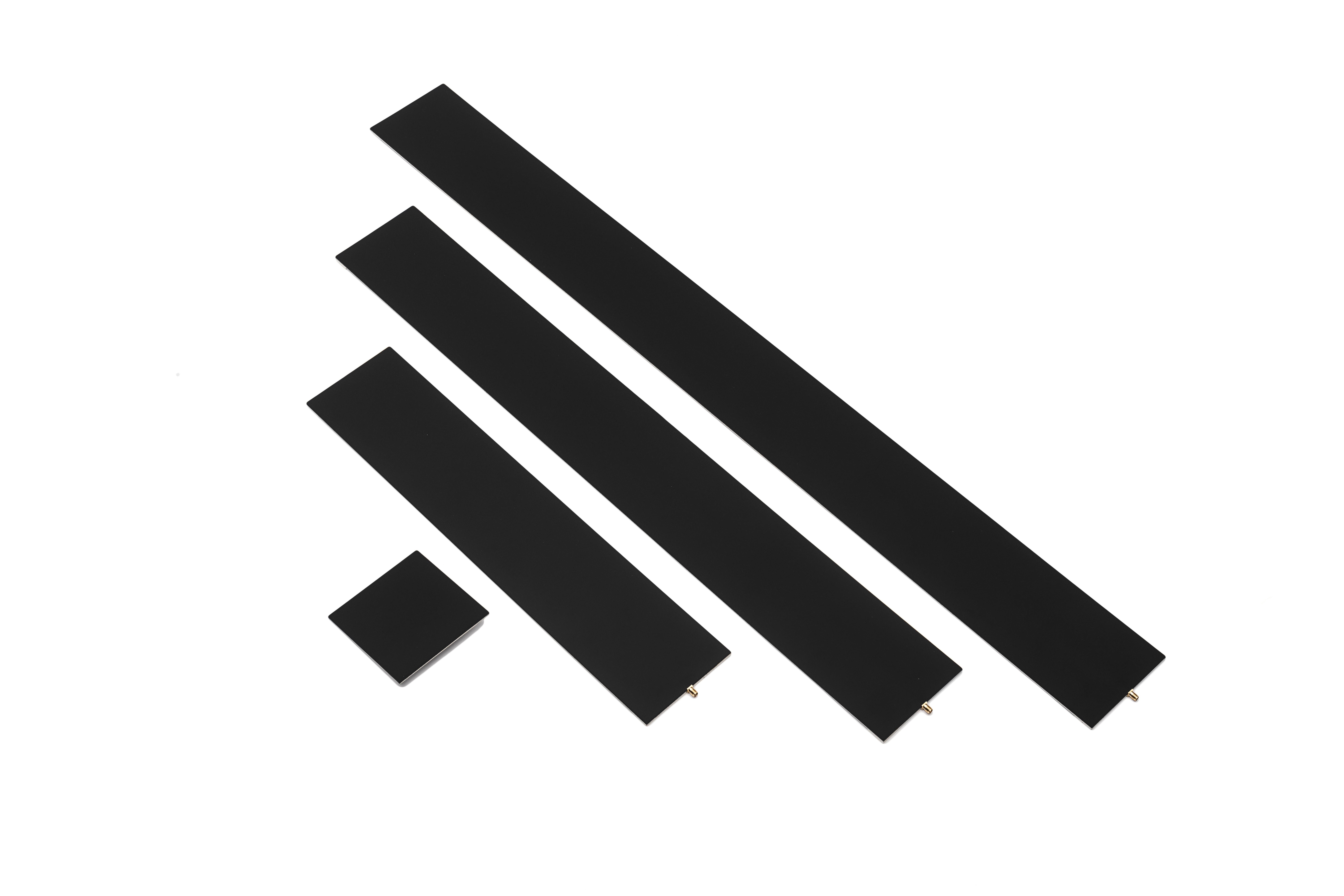

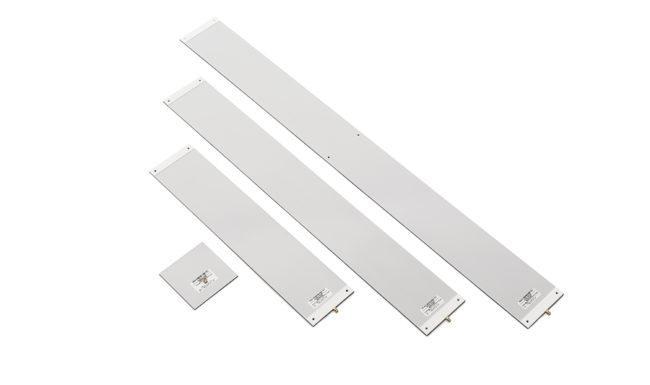

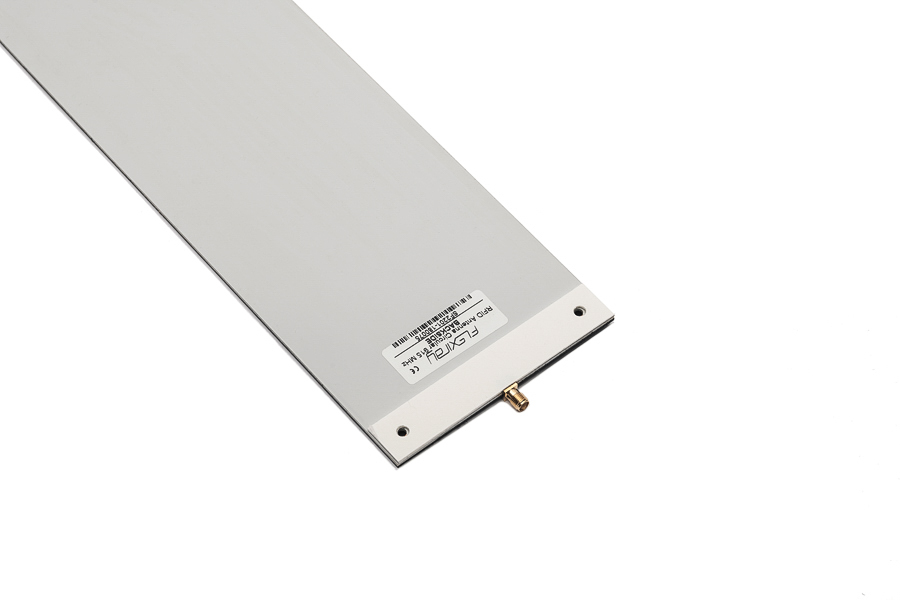

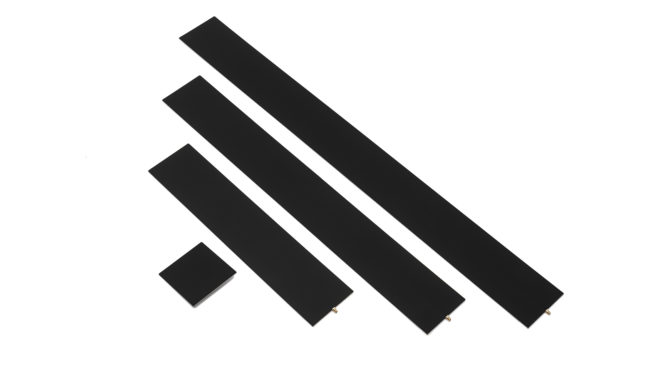

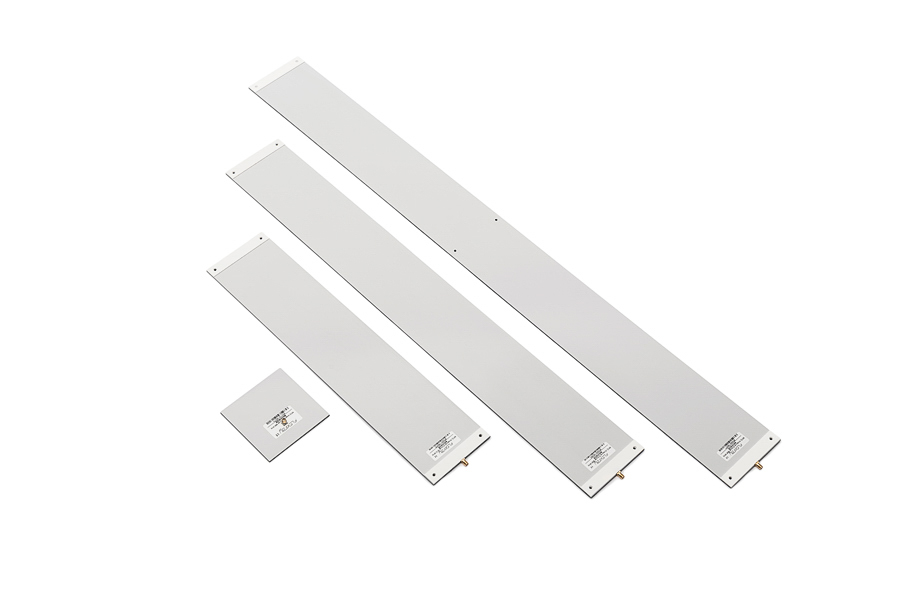

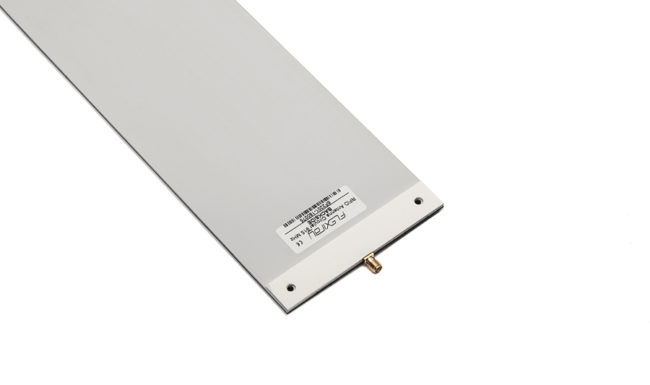

FlexiRay SF2

Antenna Model No.

SF2110

SF220X

SF230X

SF240X

Frequency Range

866 – 868 MHz (ETSI) 902 – 928MHz (FCC)

Polarization

circular RHCP

Gain

2,5 dBi (5,5 dBic)

Impedance

50 Ohms

Connector

SMA female or 250 mm pigtail SMA

VSWR – ETSI

< 1,3 : 1

< 1,3 : 1

< 1,3 : 1

< 1,3 : 1

VSWR – FCC

< 1,5 : 1

< 1,5 : 1

< 1,5 : 1

< 1,5 : 1

Max. Input Power

10W

Dimensions **

Length ETSI (mm)

110

560

810

1060

Length FCC (mm)

110

510

765

1000

Width (mm)

110

110

110

110

Height (mm)

3

3

3

3

Weight (kg)

  0,06

  0,3

  0,4

  0,5

Operating Temperature

0°C / 60°C

Order Codes

ETSI (865 – 868 MHz), SMA (F)

SF-2110

SF-2200

SF-2300

SF-2400

FCC (902 – 928 MHz), SMA (F)

SF-2111

SF-2201

SF-2301

SF-2401

ETSI (865 – 868 MHz), SMA (F) pigtail 25cm

–

SF-2220

SF-2320

SF-2420

FCC (902 – 928 MHz), SMA (F) pigtail 25cm

–

SF-2221

SF-2321

SF-2421
